Transparent Heaters

Transparent heaters evenly heat entire surfaces. They can be used for various applications, such as preventing dew condensation and snow accumulation, melting snow and ice, and thermal insulation.
GEOMATEC has a catalog of affordable products with a short delivery time to enable easy trials for various use cases, including experiments. If you want to check the thermal characteristics first, we recommend selecting one of these products.

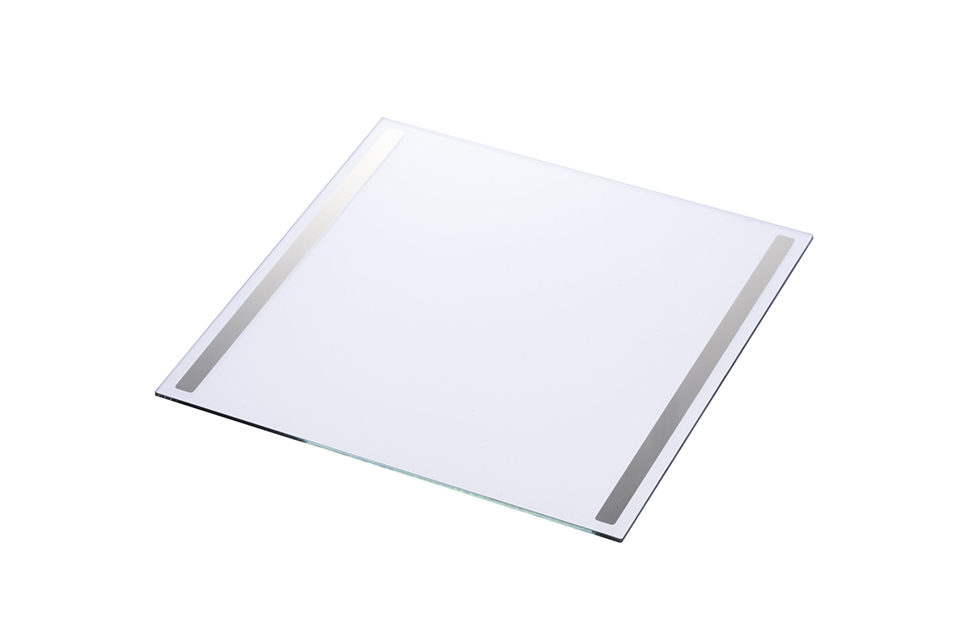

Transparent Heater

Use cases of product

  • Preventing dew condensation on surveillance cameras
  • Preventing accumulation of snow and melting snow and ice on displays
  • Heating stage of analysis devices

Material

  • Float glass
  • PET film

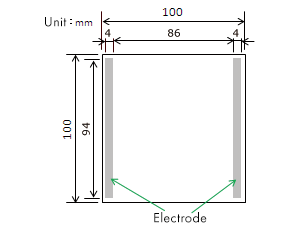

Diagram of product structure

  • Standard size of glass and films: 100 mm x 100 mm
  • Thickness: 1.1 mm for glass, 0.3 mm for films
  • Diagram of product structure
  • * This product can be purchased with a lead wire attached. (The lead wire is 15cm long.)
    Product codes 1063, 1064 and 0130 come with a lead wire attached

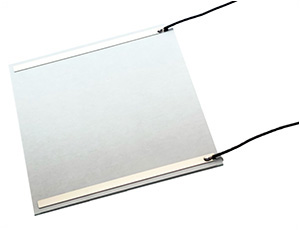

  • Product codes 1063 and 1064 (glass)

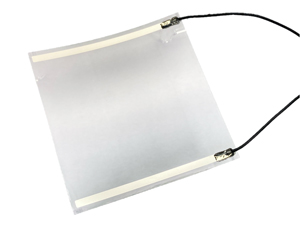

  • Product codes 0130 (film)

Note

  • Do not disassemble or modify.
    - This may cause injuries due to abnormal operation.
  • Do not allow the product to get wet.
    - This may cause a short circuit or electric shock.
  • Do not damage the heater surface.
    - This may cause abnormal operation or damage.
  • Do not touch the heater surface while the power is on.
    - Product codes 1061 to 1064 are not insulated, so touching them may result in a short circuit, electric shock or injury.
  • Do not place objects such as spray cans and lighters near the heater.
    - The heat could cause an explosion or fire.
  • Power supply not included.

Specifications and Price

  • *Click here for details on how to make an order, shipment date and payment method.
  • *Prices do not include delivery fees. Click here for shipping fees.
  • *Custom options available including resizing and patterning. Please feel free to contact us.
  • *Returns, exchanges and cancellations:
    • 1) If there is an issue with a product, we will replace it. Please contact us within five days after receiving the product.
    • 2) Products will be replaced in the following cases:
      • - If the product you received is not the one you requested
      • - If the product is soiled or damaged
Scrollable
Product code Product name Substrate
materials		 Size
[mm]		 Heated area
[mm]		 Operating voltage
[V]		 Heating (Δt)
[℃]		 Lead wire Instructions Price
(1 sheet)		 Quantity
(subtotal)
[JPY]
1061 GMT-100□-12 Float glass 100 × 100 × 1.1t 94 × 86 24 or less At 12V: 26±5
At 24V: 88±17		 n/a. [PDF] ¥12,000
Approx. $80.00 USD*1
(1 USD = 150 JPY)
(¥0)
1062 GMT-100□-24 42 or less At 24V: 30±6
At 42V: 81±15		 n/a. [PDF] ¥12,000
Approx. $80.00 USD*1
(1 USD = 150 JPY)
(¥0)
1063 GMT-100□-12L 24 or less At 12V: 26±5
At 24V: 88±17		 Included [PDF] ¥12,000
Approx. $80.00 USD*1
(1 USD = 150 JPY)
(¥0)
1064 GMT-100□-24L 42 or less At 24V: 30±5
At 42V: 81±15		 [PDF] ¥12,000
Approx. $80.00 USD*1
(1 USD = 150 JPY)
(¥0)
0130 GMT-100□-24F PET film 100 × 100 × 0.3t 12 or 24 At 12V: 20℃
At 24V: 65℃		 [PDF] ¥8,900
Approx. $59.33 USD*1
(1 USD = 150 JPY)
(0円)
Total: ¥0
