g.moth™

g.moth™, GEOMATEC’s next-generation moth-eye-inspired coating film, appears completely transparent when attached to clear materials such as glass or resin. g.moth™ is highly water-repellent and overcomes issues of durability found in conventional moth-eye films. Trial products are available so you can try out the performance of g.moth™ for yourself.

g.moth™

Summary of structure

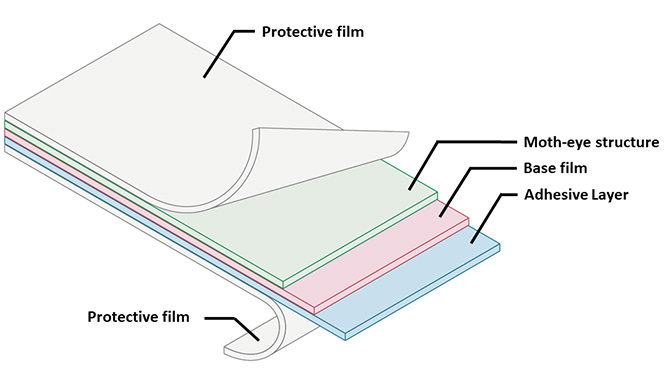

g.moth™ film structure

How to apply g.moth™

Note

  • Remove the protective film before use.
  • Sizes are correct within approx. ±3mm.
  • Handle this product with care to prevent scrapes, dents and creases.
  • Do not store in an environment with high temperature and humidity. Recommended storage environment: 10-30℃, 20-70% RH
  • If the film cannot be cleaned by wiping with a dry cloth, dip a tissue or other material in some alcohol and wipe it gently.
    Rubbing the surface of the film too hard may cause damage.
  • We recommend replacing weak (low) adhesive type films at least once every six months.
  • Once the package is opened, attach the film as soon as possible. We recommend using the film within six months of purchase.
  • Please be aware that the specifications and appearance of this product may be changed without warning.

Specifications and Price

  • *Click here for details on how to make an order, shipment date and payment method.
  • *Prices do not include delivery fees. Click here for shipping fees.
  • *Custom options available including resizing and patterning. Please feel free to contact us.
  • *Returns, exchanges and cancellations:
    • 1) If there is an issue with a product, we will replace it. Please contact us within five days after receiving the product.
    • 2) Products will be replaced in the following cases:
      • - If the product you received is not the one you requested
      • - If the product is soiled or damaged
Scrollable
Product code Reflectivity
[%]*1		 Contact angle
[°]		 Pencil hardness Base film Adhesive layer Size
[mm]*2		 Number of sheets in a set Price
(1 set)		 Quantity
(subtotal)
[JPY]
5000 0.3 or less ≧130*3

≧60*4		 H TAC n/a 150 × 300 × 0.065t 23 sheets ¥30,000
Approx. $200.00 USD*5
(1 USD = 150 JPY)
(¥0)
5010 0.3 or less Strong adhesive included 150 × 300 × 0.09t 23 sheets ¥30,000
Approx. $200.00 USD*5
(1 USD = 150 JPY)
(¥0)
5021 0.3 or less Weak (low) adhesive included 190 × 300 × 0.1t 18 sheets ¥35,000
Approx. $233.33 USD*5
(1 USD = 150 JPY)
(¥0)
5121 1.0 or less F PET Weak (low) adhesive included 190 × 300 × 0.09t 18 sheets ¥35,000
Approx. $233.33 USD*5
(1 USD = 150 JPY)
(¥0)
Total: ¥0

Fill out the form below after selecting the quantity.

  • *1Average reflectivity (wavelength 400 - 700nm)
  • *2Excluding thickness of protective film
  • *3Contact angle of pure water
  • *4Contact angle of oleic acid
  • *5The actual amount charged will be determined by the exchange rate at the time of the transaction.
  • *Change-of-mind returns are not accepted after the product is shipped.
  • *For returns due to an issue with the product, we will provide instructions when you contact us.
  • *For returns due to an issue with the product, we will cover shipping fees to return the product. In other cases, shipping fees must be covered by the customer.
