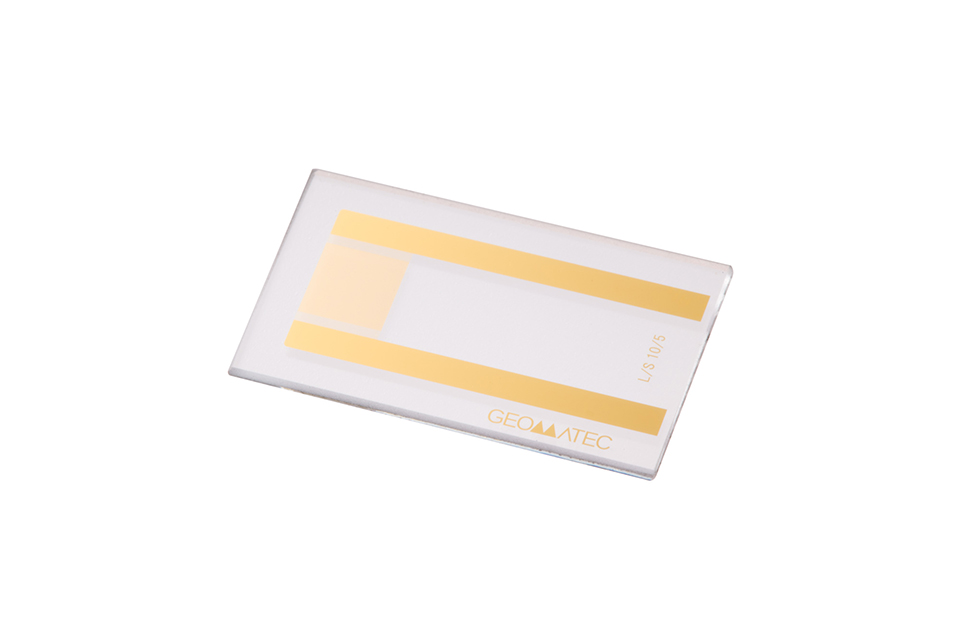

Comb-shaped Electrodes (Electro-chemical measurement chips)
Our comb-shaped electrodes can be made from a wide range of electrode materials by combining the film formation and etching technologies we have developed. The materials and shape can be customized to suit your needs.
GEOMATEC has created a catalog of products that can easily be trialed in various use cases, including experiments.
Use cases of product
- Electrodes for measuring electrochemical or organic semiconductors
- Electrodes for measuring permittivity
- Electrodes for various sensors (biosensors, chemical sensors)
Material
Glass (alkali-free glass)

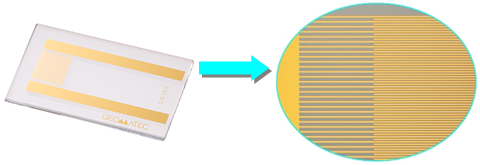

Diagram of product structure
20mm X 12mm X 0.7t
Note
- This product is intended for use in R&D.
- This product must be handled with care, as it is made from glass and there is a risk of damage or injury.
- The customer must supply their own measuring cable.
- Assess the suitability of the product before use.
- The product specifications published in this catalog may change without prior notice.
- Preparation before use
- This product is pre-cleaned in a clean room before it is shipped, but it may be necessary to clean it again after it is delivered. - Storage:
- If the product is stored for a long time, it must be kept in its case and stored in a clean environment away from high temperatures and humidity.
- The warranty period is three months.
Specifications and Price
- *Click here for details on how to make an order, shipment date and payment method.
- *Prices do not include delivery fees. Click here for shipping fees.
- *Custom options available including resizing and patterning. Please feel free to contact us.
- *Returns, exchanges and cancellations:
- 1) If there is an issue with a product, we will replace it. Please contact us within five days after receiving the product.
- 2) Products will be replaced in the following cases:
- - If the product you received is not the one you requested
- - If the product is soiled or damaged
Scrollable
| Product code | Product name | Materials of the film | Size [mm] |
Line width [µm] |
Spacing [µm] |
Number of pairs | Thickness [nm] |
Price (1 sheet) |
Quantity (subtotal) [JPY] |
|---|---|---|---|---|---|---|---|---|---|
| 0101 | GMT-AU10/5 | Au | 20 × 12 × 0.7t | 10 | 5 | 132 | 100 | ¥10,500 Approx. $70.00 USD*1 (1 USD = 150 JPY) |
Out of Stock (Sales will resume in early Janualy 2025) |
| 0102 | GMT-PT10/5 | Pt | ¥10,500 Approx. $70.00 USD*1 (1 USD = 150 JPY) |
(¥0) |
|||||
| 0103 | GMT-ITO10/5 | ITO | ¥7,900 Approx. $52.67 USD*1 (1 USD = 150 JPY) |
(¥0) |
Total: ¥0
Fill out the form below after selecting the quantity.
- *Thickness data is for reference only. In the gold and platinum electrodes, a titanium layer (about 10nm) is formed on the layer that adheres to the glass substrate.
- *1The actual amount charged will be determined by the exchange rate at the time of the transaction.
- *Change-of-mind returns are not accepted after the product is shipped.
- *For returns due to an issue with the product, we will provide instructions when you contact us.
- *For returns due to an issue with the product, we will cover shipping fees to return the product. In other cases, shipping fees must be covered by the customer.
