Metal Electrode Films for Capacitive Touch Screens / Low reflection blackened electrode film
Metallic films suitable for fine wiring
Overview
Fine metallic wiring is used for touch screen electrodes. We provide metallic films that can be easily processed and offer superior electro-conductive characteristics. With combining our optical thin film technology, blackened electrode film gives sleeker view on a touch screen surface by minimizing reflections caused by metal underneath. Offering electrode material optimized best for your touch panel configuration.
Features & Strengths
Point1 Optimized for fine processing via photolithography
Point2 We offer solutions for conductor materials with an eye for electro-conductive characteristics, reliability and more

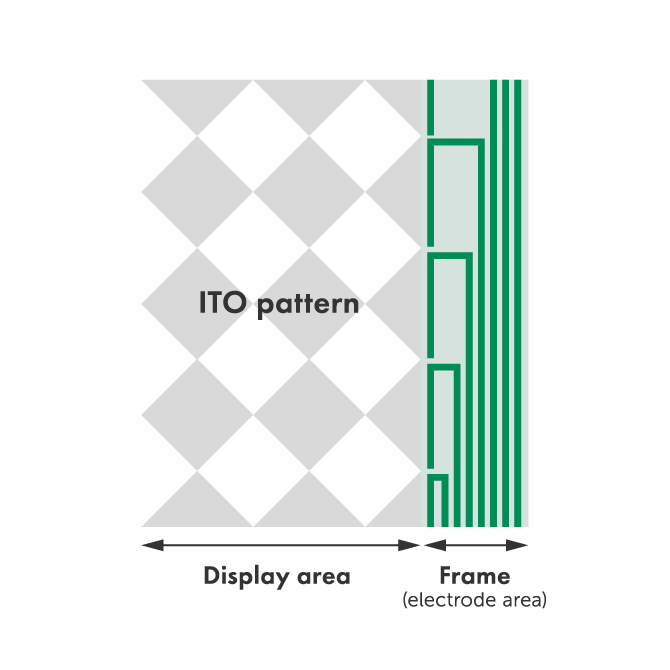

As increasingly fine patterns are used in display areas, the number of electrodes grows accordingly. To address this problem, we recommend the use of silver and aluminum conductor materials, in consideration of their resistance, etching properties, and reliability.
Applications
Touch screen displays
Touch screen displays owe their comfortable touch control and beautiful video experiences to the function of high-performance thin films
View more applications
Automobile display devices
Metal electrode films for capacitive touch screens contribute to the fine wiring needed for comfortable touch operations in increasingly digital automobile display devices.
View more applications
Specifications
A diverse variety of metal films
When considering resistance, etching properties, and reliability, we recommend the use of silver and aluminum conductor materials.
Silver varieties
We recommend APC-TR parts, as they are thought of as the most reliable.
Aluminum varieties
In consideration of reliability and comparative resistance, select modified neodymium (1wt%) parts. Lastly, in consideration of contact with ITO films, as well as improved surface resistance to alkalines, we recommend a structure that sandwiches different materials. In terms of materials, we recommend MAM parts, due to their etching properties, environmental properties, and reliability.
Detailed explanations of each can be found here.
| Materials | Resistance comparison with thin films (µΩ·cm) | Cost | Glass adhesion | Wet etching properties |
|---|---|---|---|---|
| Cr | 20 | Low | Average | Good |
| Mo | 13 | Standard | Good | Good |
| Al | 4 | Low | Average | Good |
| Ta | 180 | Standard | Not good | Not good |
| Cu | 2 | Low | Not good | Good |
| Ti | 70 | Low | Good | Average |
| Ni | 16 | Low | Not good | Average |
| Mo Alloys | Approximately 18 | Standard | Good | Good |
| Al Alloys | Approximately 7 | Low | Good | Good |
| Ag Alloys | Approximately 3.5 | High | Average | Average |
Low reflection blackened electrode film
| Film Material | Thickness [µm] | Width [mm] | Sheet Resistance [Ω/sq] |
|---|---|---|---|
| PET | 75 | 1300 | 0.1 |

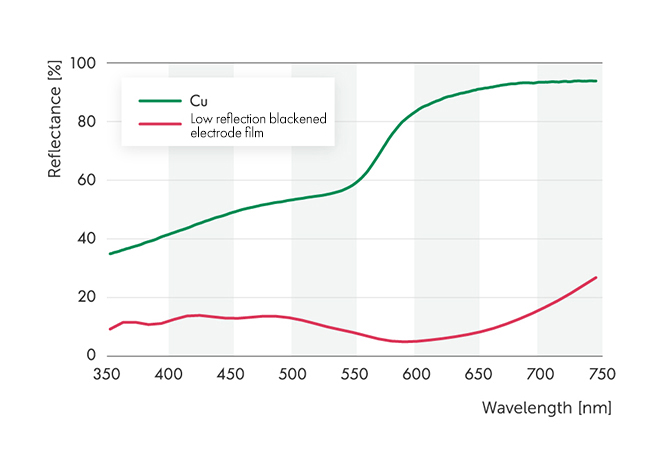

| Y | L* | a* | b* |
|---|---|---|---|
| 16.7 | 47.9 | -8.3 | -9.5 |
Layer Structure: PET/ Low-reflection (blackening) Layer / Electrode (Cu) / Low-reflection (blackening) Layer
*The optical properties show values from film surface. Forming low-reflection blackened electrode film on a glass is also available.
